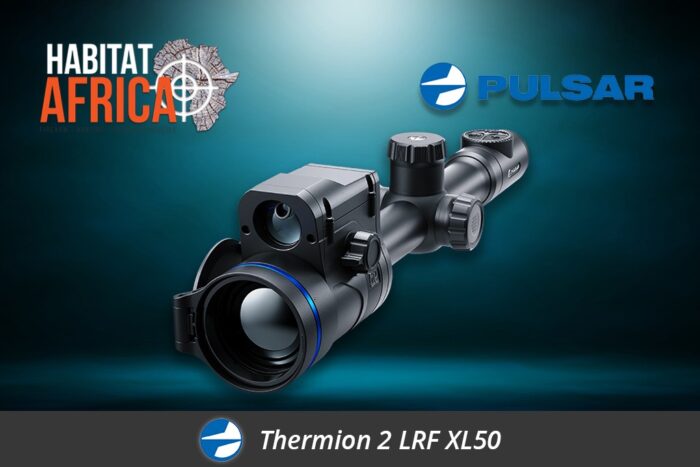

Pulsar Thermion 2 LRF XL50 Thermal Riflescope

R127,995.00 Inc VAT

2 in stock

SKU: 76557

Description

Pulsar-Thermal-Imaging The Pulsar Thermion 2 LRF XL50 Thermal Riflescope offers the highest level of thermal imaging. The image generated with the new 1024×768- pixel thermal sensor. This features high definition and rich detail ideal for uncompromised trophy identification. The silhouettes, anatomy & behavioral peculiarities of the animal are clearly visible and easily distinguished.

Variable 1.75-14x magnification (x8 digital zoom) provides improved focus and better overall object recognition at significant distances. The HD-sensor allows to maintain a high level of image detail across the whole magnification range. The zoom changes either gradually in 2x step or continuously for a customized FOV / magnification ratio for each specific situation.

Understanding the target distance is an essential factor in making the right decisions. The compact laser rangefinder with a range of up to 800 meters is seamlessly integrated into a slim design riflescope. Therefore, the receiver and emitter are within clearance limits of a single optical channel.

The Thermion 2 LRF ensures accurate shooting at any distance. The built-in laser rangefinder provides the hunter with an exact sense of distance to the target. In addition, the sophisticated internal ballistics algorithm calculates the suggested POA for accurate long-range shooting. Simply create a ballistic profile for your shooting equipment. Upload it to the Thermion’s memory with the Stream Vision Ballistics App, and turn your Thermion 2 LRF XL50 into a highly accurate and efficient long-range aiming tool.

Thermion 2 LRF XL50 offers a wide field of view for easy scanning and spotting. Even at high zoom levels, the large-format sensor allows for a well-balanced FOV / magnification ratio. For a clear and detailed image field of view, the Thermion’s 2 LRF XL50 germanium F50/1.0 objective lens truly expands the advantages of an HD thermal sensor. The use of aspherical lenses and diffractive optical elements maintains a high aperture ratio. With the capability of sharp and precise image projection across the entire sensor area.

Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed. The pixel-to-pixel image transfer from the sensor to the display makes the image as sharp as possible. Adjustable sensor sensitivity amplification combined with new filtration algorithms offers the hunter great opportunities for observation in diverse weather and temperature conditions. The amplification setting helps to define the animal’s trophy features. Therefore, ensuring clear rendering of objects and background in the field of view.

Wireless remote control

The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control features excellent ergonomics. In addition, the buttons activate the most used functions, while rotating or pressing the encoder operates fine adjustment and menu navigation. The design, size and positioning of the buttons and encoder are customized for use with both bare hands and gloved hands. Above all, it takes minimum movement for a hunter to control the riflescope. Therefore, enabling them to maintain maximum concentration on the hunting process. With the remote control placed in any convenient position on the fore-end or rifle butt.

Pulsar-Thermion-2-LRF-Thermal-Riflescope-Habitat-Africa

Pulsar Thermion 2 LRF XL50 Thermal Riflescope Features

Pulsar Thermion 2 LRF Variable magnification

Mounting on standard 30 mm rings

The Thermion 2 LRF XL50 offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic day sight in a 30mm aluminum alloy housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.

Pulsar Thermion 2 LRF High-precision aiming

.375H&H ready

Thermion 2 LRF XL50 thermal riflescope is high impact resistant. In addition, it can be used with rifled hunting weapons with calibers of 9.3×64, .30-06, .300, .375H&H, etc. As well as with smooth-bore and pneumatic weapons.

Pulsar Thermion 2 LRF 5 individual shooting profiles

10 shooting profiles / 100 zeroing distances

Zeroing settings are saved in a shooting profile. The Thermion 2 LRF XL50 memory contains up to 10 shooting profiles for several types of weapons or cartridges. So, each profile holds up to 10 zeroing distances input manually, but can be transformed for automatic ballistic calculations based on measured distance using the Stream Vision ballistics app.

Pulsar Thermion 2 LRF A selection of 10 reticle shapes

High-precision aiming in the «Picture-in-picture» mode

The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.

Pulsar Thermion 2 LRF Mounting on standard 30 mm rings

A selection of 10 reticle shapes in 9 color modes

A reticle is electronically displayed in the same plane as the target. The Thermion 2 LRF XL50 memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colors.

Pulsar Axion 2 Fast start-up

Customizable user mode for individual image adjustment

Firstly, use the brightness and contrast adjustments to maximize the detail and informative value of the image in specific observation conditions. Secondly, the User Mode function saves selected brightness and contrast settings in the device’s memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Pulsar Thermion 2 LRF High caliber recoil resistance

64 GB memory photo and video recording

Above all, keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 64 GB of internal memory gives the ability to record many hours of video and tens of thousands of photos.

Pulsar Axion Key XM30 IPX7 Waterproof Rated

Combined dual battery system

The Thermion 2 LRF XL50  is powered with two rechargeable batteries: one built-in with a capacity of 4.9 A·h, and the other replaceable. So, the standard package supply includes replaceable batteries of 2A·h and 3.2 A·h capacity. Above all, a single charge guarantees up to 10 hours of continuous operating time. The embossing on the body of the replaceable batteries enables accurate determination of the correct position and enables replacing a flat battery with a new one quickly and confidently in complete darkness by touch alone.

Pulsar Thermion 2 LRF Operating temperature

Flexible set of colour palettes for various needs

1024×768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions. A choice of 8 colour palettes lets the users observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. In addition, red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Pulsar Axion 2 AMOLED Display

Wi-Fi integration with iOS and Android devices

The built-in Wi-Fi module with a dual 2.4 / 5 GHz waveband support connects the riflescope with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to the screen of a mobile device in real time, remote control of digital functions of the device and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a  thermal imaging device.

Pulsar Axion 2 8 color palettes

Operation in extreme temperatures -25 to +50°C

Thermion 2 LRF riflescopes are designed to operate in a wide range of temperatures -25 to +50 °C. The frost-resistant AMOLED display has a standout quick response time and ensures a sharp image when observed in motion.

Pulsar Thermion 2 LRF Wide-angle eyepiece

IPX7 submersion waterproof rated

In conclusion, with an IPX7 waterproof rating, the Thermion 2 LRF XL50 riflescope works in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.
Manual



Pulsar Thermion 2 LRF XL50

Main

Sensor: 1024×768 @ 12 µm (NETD <35 mK)
Objective lens: F50/1.0
Magnification, x: 1.75 – 14
Field of view (HxV), degrees / m@100m: 14×10.5 / 24.6×18.4
Detection range, m: 2300

Sensor

Type: uncooled
Resolution, pixels: 1024×768
Pixel pitch, µm: 12
NETD, mK: 35
Frame rate, Hz: 50

Optics

Objective lens: F50 / 1.0
Magnification, x: 1.75 – 14
Field of view (HxV), degrees / m @ 100 m: 14×10.5 / 24.6×18.4
Eye relief, mm: 50

Display

Type: AMOLED
Resolution, pixels: 1024×768

Range Performance

Detection range, m: 2300

Laser Rangefinder

Safety class for laser equipment according to IEC 60825-1:2014: 1
Wavelength, nm: 905
Max. measuring range, m: 800
Measurement accuracy, m: ± 1

Reticle

Click value, H/V, mm at 100 m: 24 – 1.75х, 12 – 3.5х, 6 – 7х, 3 – 14х
Click range, H/V, mm at 100 m: 4800 / 4800
Number of preloaded reticles: 10

Video Recorder

Video / photo resolution, pixel: 1024×768
Video / photo format: .mp4 / .jpg
Built-in memory, GB: 64

Wi-Fi

Wireless Protocol: Wi-Fi
Wireless Standard: IEEE 802.11 b/g/n/ac
Frequency, GHz: 2.4 / 5

Bluetooth

Wireless Protocol: BLE 4.2
Wireless Standard: IEEE 802.15.1
Frequency, GHz: 2.4

Environmental Characteristics

Degree of protection, IP code (IEC60529): IPХ7 (waterproof)
Operating temperature range, °С: -25 – +50

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules: 6000
Shock resistance on the smooth-bore rifles, caliber: 12
Compatible mounts: Standard 30 mm rings
Supported Application: Stream Vision 2, Stream Vision Ballistics

Power Supply

Output voltage, V: 3.0 – 4.2
Battery type: Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
Capacity, mAh: 2000 (external) + 4900 (internal)
Operating time on battery pack (at t=22°C), h *: 7
External power supply, V: 5 V, 9 V (USB Type-C Power Delivery)

Weight & Size

Body material: Aluminum alloy
Dimensions, mm: 420×78,5×94,5
Weight, kg: 1.03
