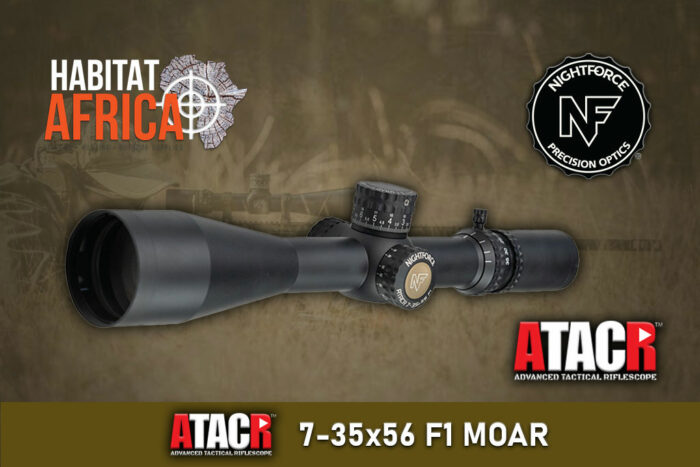

NightForce ATACR 7-35×56 F1 MOAR Riflescope
PRODUCT OVERVIEW
The NightForce ATACR 7-35×56 F1 MOAR Riflescope is a high-magnification riflescope that delivers razor-sharp imaging across the entire zoom range. Inspired by the NXS riflescope series and designed from the ground up, the ATACR – Advanced Tactical Riflescope defines ruggedness, reliability and consistency. The NightForce ATACR 7-35×56 F1 MOAR Riflescope is built with mission standard critical features. ZeroStop with up to 120 MOA /35 Mils of elevation adjustment. Options of illuminated MOA or MIL based ranging reticles and incorporating Nighforce’s proprietary optical prescription in a built-like-a-tank housing. Every ATACR riflescope will deliver bench-rest precision even under the harshest of conditions. Fully multi-coated ED glass results in superb light transmission, brilliant images and exceptional color contrast.
The ATACR Riflescope Models rang from the compact 1-8x to the powerful 7-35x in both first and second focal plane configurations. ATACR riflescopes can cover virtually any situation a hunter or sport shooter could encounter. Additionally ATACR riflescopes are offered with four of their most sophisticated, intelligent reticles, leaving nothing to chance. The ATACR redefines the “long” in long range for serious sport shooters and hunters, pushing the envelope of precision…and possibility.
NightForce ATACR 7-35×56 F1 MOAR Riflescope Features
The NightForce ATACR 7-35×56 F1 MOAR Riflescope includes the Nightforce Hi-Speed adjustments with patented ZeroStop. It is available in .1 MRAD (12 Mils per revolution) or .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with the approximate numbered distances and is coupled with Digillum digital reticle illumination.
- First Focal Place Reticle Design
- Fully Multi-Coated ED Optics
- ZeroStop Elevation Adjustments
- .25 MOA or .1 MIL Adjustments
- Hi-Speed Adjustments – 30 MOA or 12 Mils per revolution
- Capped Windage Adjustments
- Parallax Adjustments with distance markings
- Digillum Digital Reticle Illumination
- Enhanced Engraving
- Integrated Power Throw Lever
- XtremeSpeed Diopter Adjustments
The eyepiece features enhanced engraving. The integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment. The 34mm tube allows 120 MOA/34.9 Mils of elevation adjustment. Fully Multi-Coated ED glass results in light transmission values of over 90%, brilliant images and exceptional color contrast. A magnification range of 5x to 35x. The result is a wider field of view as a result of its unique optical prescription.

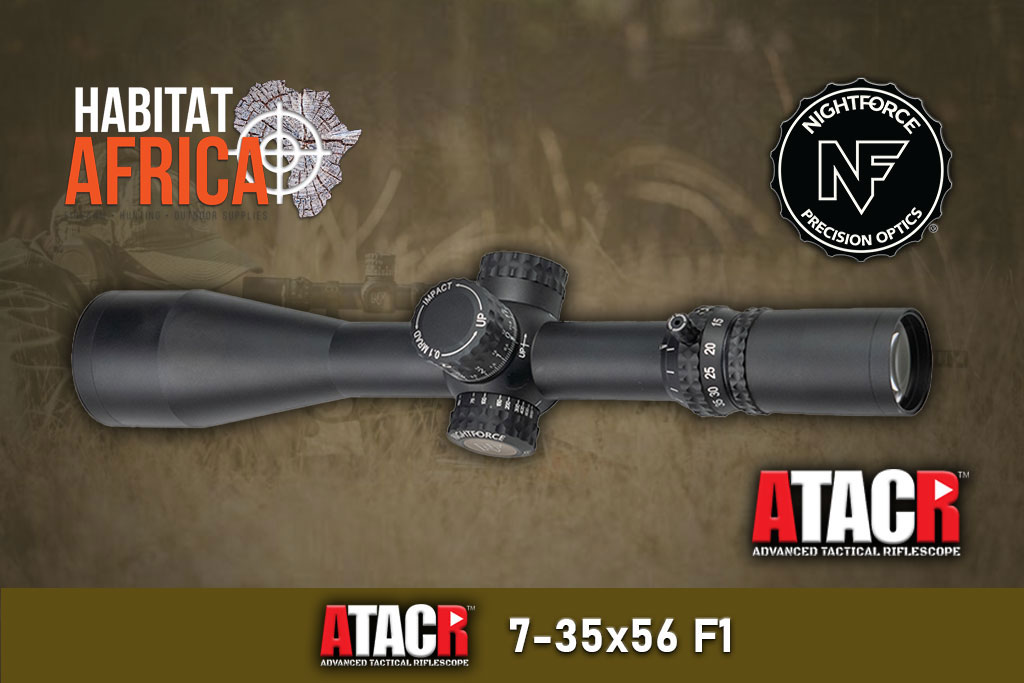

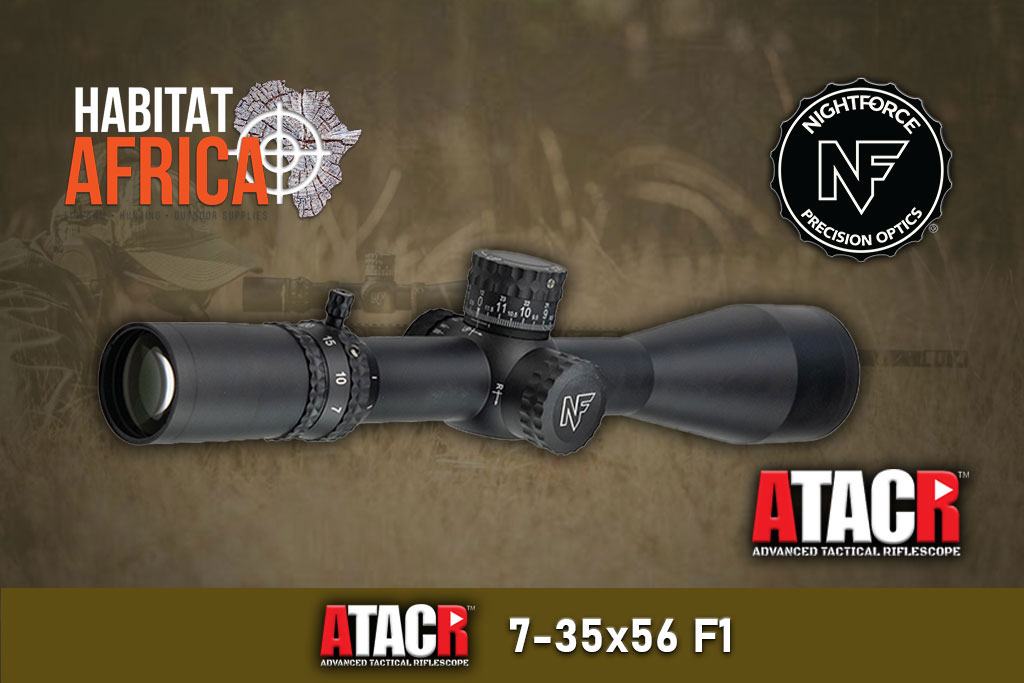

Technical Data – NightForce ATACR 7-35x56 F1 Riflescope
| ATACR 7-35x56 F1 Digillum PTL | |
|---|---|
| Focal Plane | Second Focal Plane (F2/SFP) |
| Magnification Range | 7-35x |
| Tube diameter | 34 mm/1.34 in |
| Overall length (inches/mm) | 16.0 in / 406 mm |
| Weight (ounces/grams) | 39.3 oz / 1113g |
| Mounting length (inches/mm) | 6.6 in / 167 mm |
| Click value | .250 MOA .1Mil-Rad |
| Internal adjustment range (MOA/Mil) | e: 100 MOA w: 60 MOA e: 29 Mil w: 17 Mil |
| Parallax adjustment | 11 yd–∞ |
| Field of view @100 yards/100 meters | 7x: 15.0 ft 35x: 3.4 ft 7x: 5.0 m 35x: 1.1 m |
| Exit pupil diameter | 7x: 6.0 mm 35x: 1.6 mm |
| Calibrated Ranging Power | 35x |
| Eye relief | 91 mm / 3.6 in |
| PTL (Power Throw Lever) | Standard |
| Reticles available | MOAR-T™ MIL-R™ MIL-C™ MIL-XT™ H-59™ TREMOR 3™ |
| Illumination | DigIllum |
| Elevation Feature | ZeroStop |
NightForce ATACR 7-35x56 F1 Riflescope Video
NightForce ZeroStop Feature Video
Nightforce MOAR™ F1 Reticle
The Nightforce MOAR™ reticle is a major advancement in precision shooting. A floating center crosshair two MOA wide and two MOA tall provides a precise aiming point— especially on smaller targets at longer ranges. One-MOA elevation and windage spacings provide for more accurate rangefinding and hold-offs compared to ordinary reticles with coarser markings.
The MOAR™ F1 reticle features 1 MOA elevation and windage markings for accurate range finding and hold-offs. A floating center crosshair and bold 3, 6 and 9 o'clock posts make this reticle fast and easy to use in the field. This MOAR™ F1 reticle features over 80 MOA of elevation below center and total windage of 40 MOA on most models and 80 MOA on NX8 models.
- The finest, most precise MOA-based reticle for Nightforce NXS and ATACR riflescopes
- Maximizes performance of Nightforce long-range riflescopes
- Will not obscure small targets at extreme distances
MOAR™ Reticle Subtensions
