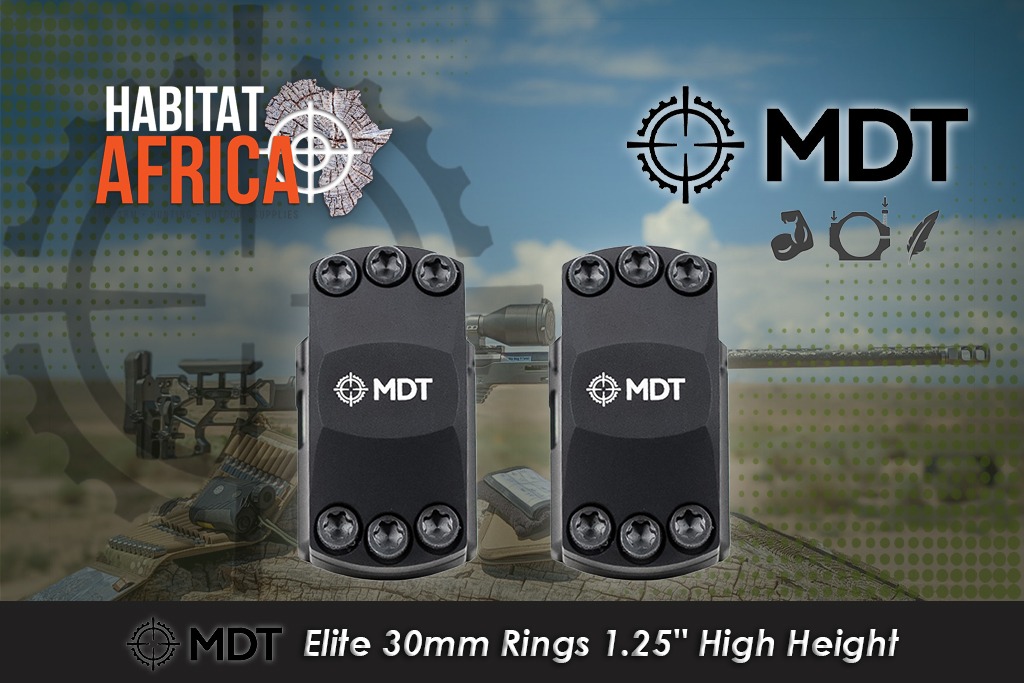

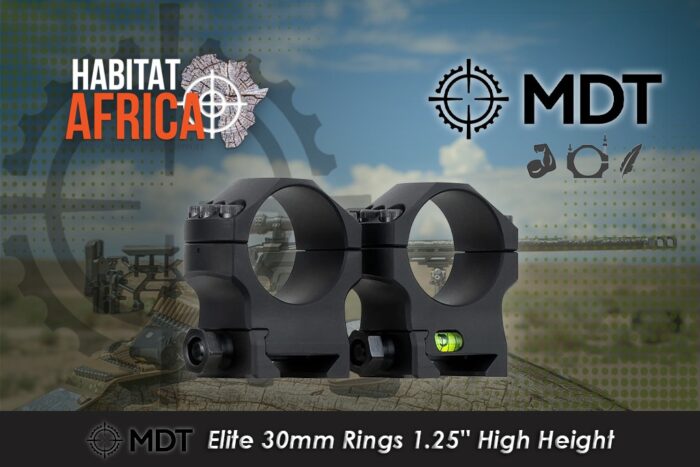

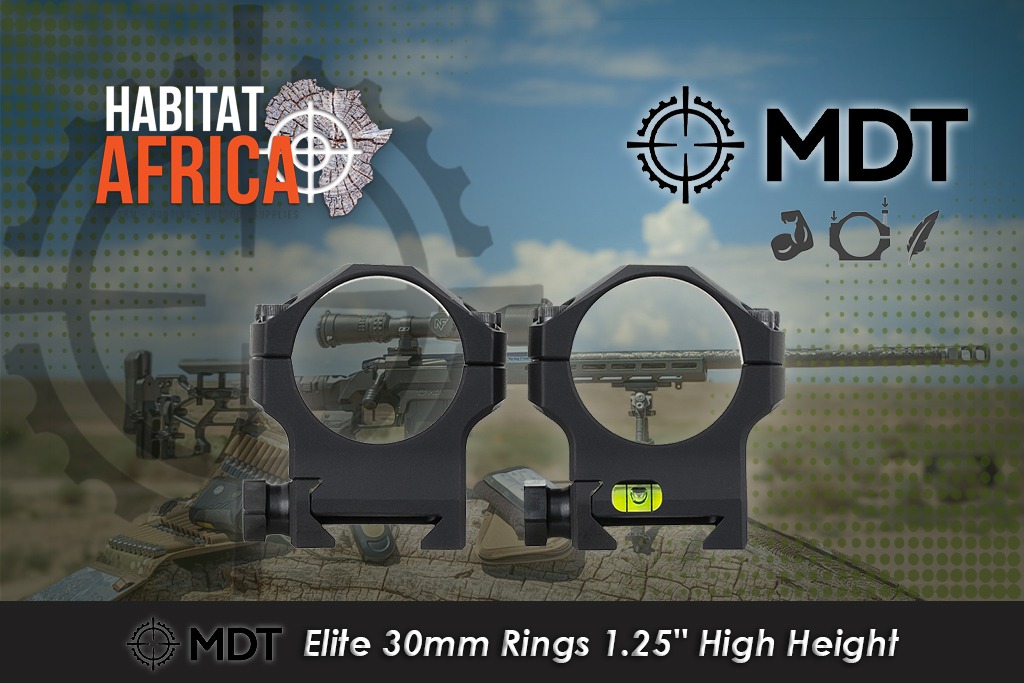

MDT Elite 30mm Rings 1.25” High Height

Description

The MDT Elite 30mm Rings 1.25” High Height offer a solid, light weight mounting system for your optics. Made from precision-machined aluminum. Built with strength in mind while remaining lightweight and easy to install. In other words, if you are looking for scope rings that won’t weigh you down, but still offer robust and reliable performance. Look no further than the MDT Elite Scope Rings. With no lapping required, you’ll appreciate the precise fit and zero hold. Above all, no thread-locker is required on correctly torqued screws. There is also no need for any friction tape or rosin on standard scope tubes.

So whether you’re taking on big game or just honing your skills at the range, trust the MDT Lightweight Premier Scope Rings to hold your zero and keep you on target. In conclusion, most scopes rings have a industrial appearance. The sleek MDT Elite scope rings go the extra mile to make your rifle, not only perform well, but look the way it should.

MDT Elite 30mm Rings 1.25” High Height Features

• Designed for ultimate precision and strength
• 25mm (0.984”) of lateral contact with scope tube
• 30mm (1.181”) of lateral contact with mounting rail
• The main body is machined on an automated seven-axis, high-end CNC machine tool
• Extra wide profile provides extremely stable mounting
• The bottom rail interface is machined at the same time as the scope clamp interface, guaranteeing all rings are square and parallel
• CMM checked to 1.5 millionths of an inch precision
• Machined from Billet 7075-T651 Aluminum – 1/3 the weight of steel with similar strength
• Extra thick clamp system will never bend, fatigue, or become loose with use
• Built-in bubble level on medium, high, and extra-high rings (No bubble level on low rings)
• Stepped base-to-cap interface allows the fasteners on one side to be tightened before making final scope alignment adjustments
• Six oversized #8-32 Grade 8 fasteners used for clamping the scope
• Sleek curves blend well into most scopes

MDT Elite 30mm Rings 1.25” High Height Details

The Precision Scope Rings of MDT are designed and manufactured to STANAG 4694 specification, also known as “NATO spec”. This means the scope ring sits tight to the top of the scope base rail, with pressure being applied to the underside of the angled rail surfaces to maintain a solid interface.
By contrast, US MIL-STD-1913 spec mounts attach only to the angles sides of the rail, leaving a small gap between the top of the rail and the underside of the mount, and significantly reducing the amount of contact area between the mount and rail.
Testing performed by NATO has shown that the STANAG attachment method increases the robustness of the interface, leading to increased alignment repeatability. MDT Elite Precision Scope rings can be mounted to scope base rails designed to both the STANAG and MIL-STD specifications.
