Leupold VX-FREEDOM 4-12X40 CDS TRI-MOA
R9,499.00 Inc VAT
Available on backorder
Notify me when stock is available again
Description
The Leupold VX-FREEDOM 4-12X40 CDS TRI-MOA delivers reliable, accurate, and extremely clear performance in a package that outperforms its price season after season.
The VX-FREEDOM delivers legendary performance and dependability in a versatile magnification range that’s ideal for mid to longer-range shots. Above all, this rugged and lightweight riflescope can get the job done on whatever rifle you have in your safe.
The VX-FREEDOM delivers every time. Similarly, equipped with Leupold’s Custom Dial System® (CDS). Simply range your target, dial the distance, and aim dead on. The Leupold VX-FREEDOM 4-12X40 CDS TRI-MOA delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-FREEDOM delivers excellent dawn-to-dusk light transmission. This means that the image is bright when it matters most. Hunters and shooters demand elite-level glare reduction in harsh light, and the best resolution and clarity. The VX-FREEDOM delivers.
In conclusion, the VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.

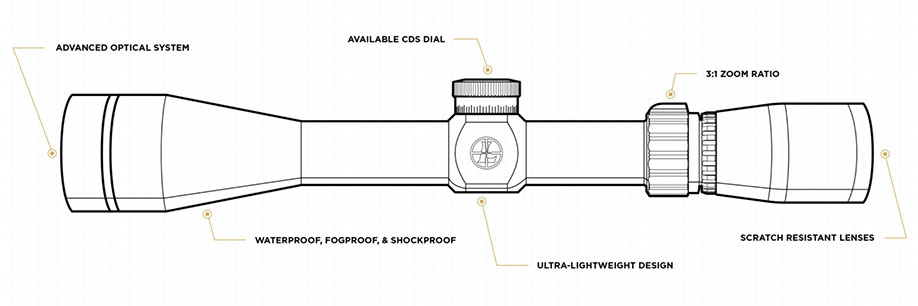

VX-FREEDOM Features
3:1 ZOOM RATIO
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
ADVANCED OPTICAL SYSTEM
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
SCRATCH RESISTANT LENSES
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
1/4 MOA FINGER CLICK ADJUSTMENTS
1/4 MOA Finger Click windage and elevation dials are designed to give you easy grip at the range or in the field. The standard 1/4 MOA of adjustment per click will make you feel right at home when sighting in.
6061-T6 ALUMINUM
High-quality, domestic, aerospace-grade aluminum is used to provide maximum strength and durability without adding unnecessary weight.
LOCKABLE EYEPIECE
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
CUSTOM DIAL SYSTEM
Leupold’s Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
SECOND FOCAL PLANE
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don’t utilize hash marks for range estimation.
ZERO STOP
The ZeroStop system creates a backstop when returning the dial back to zero. Therefore, so you don’t accidently turn the dial a full revolution in the wrong direction.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology. Using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks. So that the internals of the optics stay moisture free and crystal clear for life.
VX-Freedom Instruction Manual (Pdf)
VX-Freedom Series Fact Sheet (Pdf)
CDS Instruction Sheet (Pdf)
Ballistic Aiming System Manual (Pdf)
LIFETIME GUARANTEE
Anyone can offer you a lifetime warranty, but guaranteeing performance takes serious dedication and craftsmanship. From our Beaverton Oregon factory to the wilderness, the battlefield, and everywhere in between, we won’t let you down.
Leupold VX-FREEDOM 4-12X40 CDS TRI-MOA |
|
|---|---|
| BDC Dial Included | No |
| Daylight Bright Illumination | No |
| Elevation Adjustment Type | CDS |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | No |
| Reticle | Tri-MOA |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Side Focus | No |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 13.7 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 80 |
| Elevation Adjustment Range (MIL) | 23 |
| Elevation Adjustment Range (cm @ 100m) | 233 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | 14MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 80 |
| Windage Adjustment Range (MIL) | 23 |
| Windage Adjustment Range (cm @ 100m) | 233 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 12 |
| Magnification Min | 4 |
| Objective Lens Diameter (mm) | 40 |
| Linear FOV Low Mag (ft@100yds) | 21.5 |
| Linear FOV High Mag (ft@100yds) | 10 |
| Angular FOV Low Mag (Degrees) | 4.1 |
| Angular FOV High Mag (Degrees) | 1.9 |
| Eye Relief Low Mag (in) | 4.9 |
| Eye Relief High Mag (in) | 3.7 |
| Minimum Parallax-Free Distance (yd) | 150 |
Leupold VX-FREEDOM 4-12X40 |
|
|---|---|
| Total Length (in) – A | 12.49 |
| Total Mounting Space (in) – B | 5.39 |
| Front Mounting Space (in) – C | 2.32 |
| Rear Mounting Space (in) – D | 1.85 |
| Eyepiece Length (in) – E | 3.5 |
| Objective Length (in) – F | 3.6 |
| Objective Diameter (in) – G | 1.83 |
| Eyepiece Diameter (in) – H | 1.56 |
| Maintube Diameter (mm/in) – K | 1 Inch |
TRI-MOA | Download (Pdf)
- Proprietary Leupold® design
- Based off the T-MOA® reticle
- Provided hash marks in 1 MOA increments
- Features 10 MOA of measurement in each direction
- 5 MOA hash is wider for quick reference
- Open upper half of the reticle for observation and spotting
- Not caliber specific
- Rear (second) focal plane
