Description
The Kahles K525i DLR 5-25×56 SKMR4 Riflescope combines maximum optical performance and precision with unique handling and ergonomics. The SKMR4 Reticle Windage adjustment is situated on the left/right working CCW. The DLR variant is optimized for the fast action nature of Dynamic Long Range competitions. It features extended field of view, easy to read clicks, extralong throw lever and parallax spinner. The K525i DLR by Kahles cuts no corners.
KAHLES – since 1898
KAHLES has been a manufacturer of high-quality optical devices for over a century. With a 120 years of experience in the development and production of riflescopes comes a long history in the sport and shooting optics market. As the oldest riflescope manufacturer in the world, they have set many milestones. Today they help ambitious sport and target shooters to expand boundaries and to enhance their personal performance with fascinatingly simple and smart solutions. Demanding target shooters and professionals in a wide range of disciplines such as PRS, 3Gun, IPSC, Benchrest, F-class, Field Target and many more appreciate the precision and uncompromising quality of the K-series scopes.
The K1050i, K624i, K318i, K312i, K18i, K16i, K4i and especially the new K525i enjoy enormous popularity amongst competition shooters from all over the world. Above all, thanks to the highest precision and an excellent price-performance ratio. KAHLES riflescopes are some of the very best shooting optics available to target and long range enthusiasts.
Catalogue Download
Kahles K525i DLR 5-25×56 SKMR4 Riflescope Highlights
- Maximum optical performance with extra wide field of view
- 100 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks
- Extra-large turret lettering for easy and fast reading
- Above all, optional left or right TWIST GUARD windage
- Special equipment: extralong throw lever & parallax spinner for quick adjustments
- Precise illuminated SKMR4 reticle in 1 st focal plane

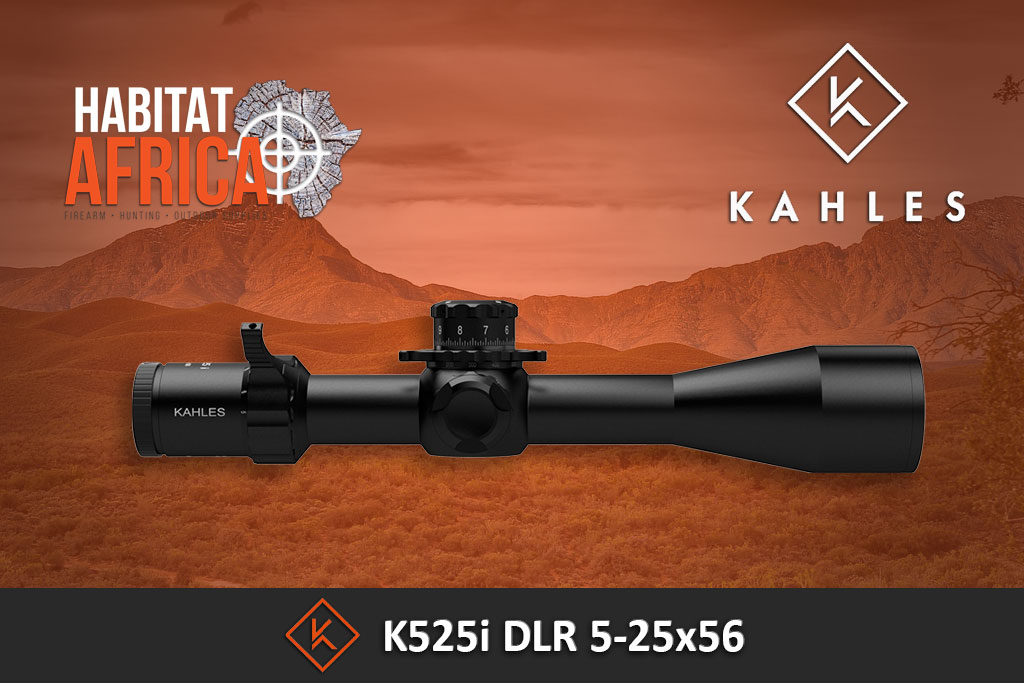

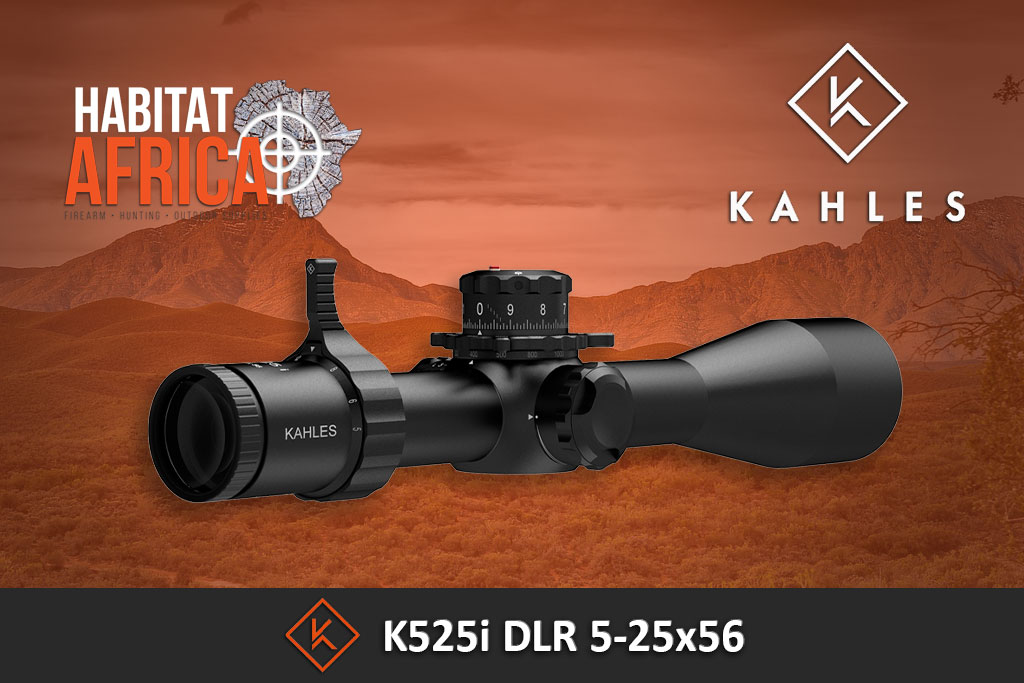

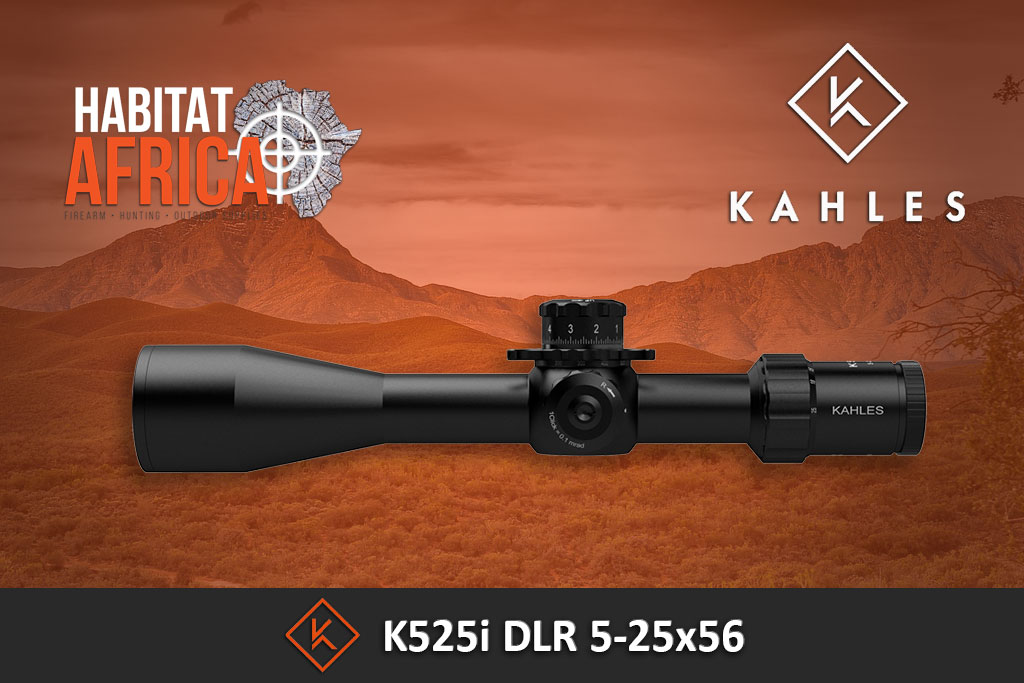

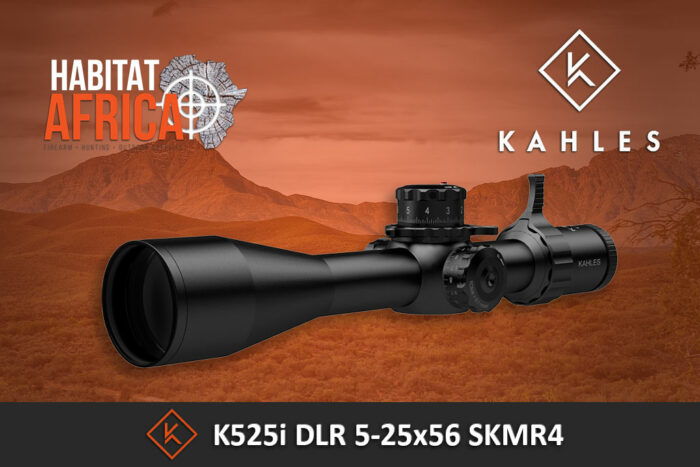

Kahles K525i DLR 5-25×56 SKMR4 Riflescope
Features
1st focal plane
When viewing the reticle in the first image plane, the reticle size also changes when the magnification is changed. However, the bar spacing and the coverage range remain the same.
Main tube 34 mm
The main tube has a diameter of 34 mm which is the standard for tactical scopes.

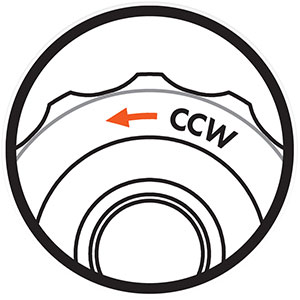

Adjustment direction CCW
Elevation and windage are working counter-clockwise (= ccw).

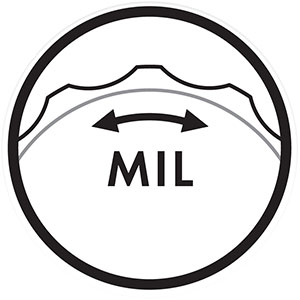

MIL
Clicks in MRAD. 0.1 MRAD correspond to a shift of the point of impact of 1 cm/100 m.
Windage left or right
Due to the unique arrangement, all operating elements can easily and comfortably be operated with the intuitively preferred hand. Without having to reach over the riflescope or having to move out of the shooting position. All relevant information is always in the visual field. Therefore, all riflescopes of the K-series have the parallax wheel integrated into the elevation turret. The patented central arrangement on top of the riflescope makes right and left-handed operation equally comfortable. Ergonomically the windage is perfectly placed on the left side for right-handed shooters and on the right side for left-hand shooters.
Zero Stop
The Zero Stop or mechanical stopping point is 3 or 4 clicks below the zero indicator. It can be activated after having zeroed the scope. This feature allows to find intuitively and quickly the zero indicator (e.g. in bad light conditions). Therefore, it allows you to adapt perfectly to special circumstances, such as e.g. high temperatures or very close targets.
TWIST GUARD windage
The innovative TWIST GUARD windage with it’s freely rotating end cover, reliably prevents accidental movement of the windage. This simple solution not only protects the windage from accidental movement. It also allows the shooter fast and unhindered handling of the windage without the need for cumbersome “locking” and “unlocking”.

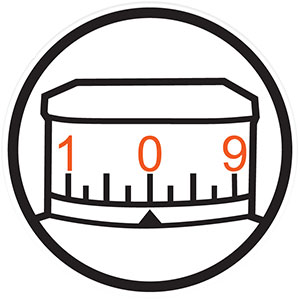

EasyRead elevation turret
The EasyRead elevation with only 100 clicks per rotation level enables particularly easy, fast and reliable reading of the clicks thanks to large click distances in combination with extra-large lettering. Compared to KAHLES standard elevations with 140 or 160 clicks for fast clicking with long adjustment travel, the calculation of the clicks in the second plane of rotation is much easier.
Datasheet Download
