Lynx LX3 4-25×50 FFP MRAD Riflescope

Description

The Lynx LX3 4-25×50 FFP MRAD Riflescope has brilliant optics. It features Next Generation HD Glass and the latest lens coatings. Therefore, gives you a crisp and bright image. See bullet holes on targets or hits on gongs at incredible distances, atmospheric conditions permitting. It is a 34mm main tube FFP MRAD scope fitted with an Adaptive Thickness™ reticle and 46-MRAD (158-MOA) elevation adjustment.

MRAD FFP Reticle

The mil reticle, shown here at 5x, 15x and 25x, has Adaptive Thickness lines that get bolder as the magnification is decreased, giving an appealing and functional sight picture from 4x up to 25x.

Visual magnification cues are spaced along the horizontal cross wires at 5x, 10x, 15x and 20x magnification. The slim Christmas tree pattern drops steeply at 32º from centre all the way to the bottom of the reticle, providing accurate aiming off points for spotting your own bullet impact or for quick follow-up shots without obstructing your view or distracting from the target.

0.035 mil centre dot makes sub-calibre shot placement a cinch when shooting at closer distances, even with.22s, as well as being small enough to show the careful and steady shooter minute shifts of aim which may be present due to factors such as breathing, heartbeat or an unsteady cheek-weld.

Precision aiming off points at 0.1 mil and 0.2 mil from centre for those precise last-minute corrections that are more intuition than aiming. The rest of the aiming-off points are spaced 0.2 mil apart which presents a clean sight picture with minimum distraction.

Lynx LX3 4-25×50 FFP MRAD Riflescope Features

Unprecedented Elevation
46 mils (158 MOA) elevation adjustment allows for shooting from 100 meters to 1850 meters using standard .308 ammunition and a correctly tapered mount. Much further with better performing long-range calibers, here are some examples:

• A 6.5 Creedmoor sending a 139gr jacketed hollow point at 2700 fps will reach out to 2150 meters.
• A .300 Norma Magnum .245gr jacketed bullet going at 2960 fps at the muzzle will get to 2865 meters.
• A .375 CheyTac 400gr solid leaving the barrel at 2975 fps will hit the gong at 3020 meters.

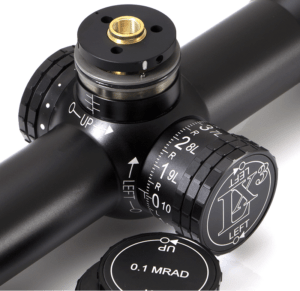

Oversized adjustment controls have a distinct audible and tactile ‘click’. Each click is 0.1 mil and one full turn of the elevation control moves your point of aim ten mils. Four and a half turns of the elevation control moves through the entire 46 mils adjustment range. The easy to engage zero stop returns the control to the same position every time.

Exquisitely accurate
The windage and adjustment controls move the point of aim precisely 0.1 mil per click and return exactly back to the starting point. Setting the turret zero on the windage and elevation controls is quick and easy and requires no tools. You can now make last minute corrections at the shooting position even when prone. No hunkering over the scope. No ghost clicks.

Excellent Windage
16 mils (55 MOA). Each full turn of the control is 10 mil and with well aligned mounts the return to zero on windage will always be less than one full turn.
More Info

Technical Data

Lynx LX3 4-25×50 FFP MRAD Riflescope
Magnification:	4×25
Effective Objective Diameter(mm):	28.5 / 50.0
Exit pupil diameter (mm):	7.1 / 2.0
Eye-relief (mm):	77-91 / 85-92
Actual FOV:	5.57º / 0.89º
at 100 m:	9.7 / 1.6
Apparent FOV:	22º
Close Focus:	20m
Diopter adjustment:	-3D to +3D
Resolution:	5.7 ” / 3.2 “
Focal Plane :	First
Body Tube diameter:	34mm
Reticle Type:	Glass
Parallax:	Side focus
Illumination:	No
Click Value:	0.1 MRAD
Elevation Adjustment Range (per Rotation):	46 MRAD (10 MRAD per turn)
Windage Adjustment Range (per Rotation):	17 MRAD (10 MRAD per turn)
Turret Types (Elevation):	Exposed
Zero Stop:	Yes
Locking system:	No
Turret Types  (Windage):	Exposed
Zero Stop:	No
Locking system:	No
ED Glass:	Yes
Length:	336mm
Weight:	970
Operational Temperature:	-20℃～ 70℃
Water Proof:	3m
