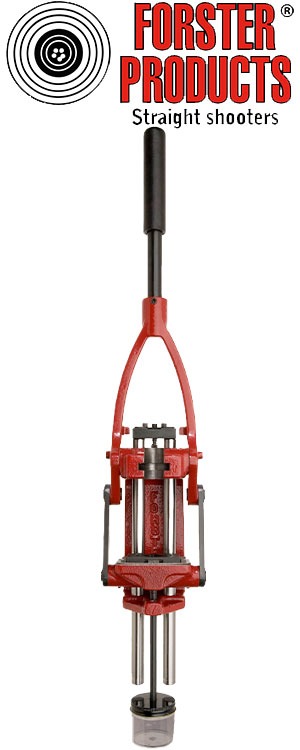

Forster Co-Ax Reloading Press

Description

The Forster Co-Ax Reloading Press comes with “S” Jaws. Forster feels that their is no need to complicate the reloading process. The Co-Ax Press keeps it simple while at the same time still delivering famous Forster precision. Notes that the “S”-Jaws work with most brass cartridge cases. An optional LS-jaw will be needed if loading 22 Hornet, 256 Winchester Magnum, 348 Winchester, 378 Weatherby Magnum, 416 Rigby, 416 Remington Magnum, or any 45-70 based case like 40-65, 45-70, 45-90, 45-110

Forster Co-Ax Reloading Press Features

The Co-Ax comes with several unique features that makes it truly one of a kind:

• Snap-in and snap-out die changing. In other words, you can change from sizer die to seater die in two seconds!
• A positive spent primer catcher system. This passes all spent primers and dirty carbon through a tube and into a container. Therefore, helps to keep all the working parts free of dirt and abrasives
• Dual floating guide rods to help ensure perfect alignment
• Because there is absolutely no torque on the head of the Co-Ax® Press. Long life is the rule rather than the exception. Due to the design of the linkage and pivots, all forces are in equilibrium. Whether the press is at maximum work load or at rest
• It has three times the mechanical advantage of an ordinary “C” press. It’s so effortless. There’s no pain but plenty of gain
• The Press delivers perfect alignment of the die and the case because the shell holder jaws are designed to float with the die. Thereby permitting the case to center precisely in the die
• With no frame supports or swinging primer arms to interfere or cause an obstruction. It provides plenty of elbow room for both right handed or left handed operators.
• The Co-Ax® Press accepts any standard 7/8″ X 14 reloading die, some with existing locking rings.
• The unique top priming device seats primers to factory specifications. The seater is always at right angles to the case head. Primers will not flip or tip. They will be seated straight, level and at a uniform distance below the case head. Primers cannot be crushed, nor will they protrude from the case head and cause premature firing
• The top of the stroke provides a rock solid stop for consistency.
